Hardware & Devices
S4IoT Solutions 4 IoT

CatM1/NB-IOT Developpment kit Athen Lite

Visit S4IoT Solutions 4 IoT webpage

Product Summary

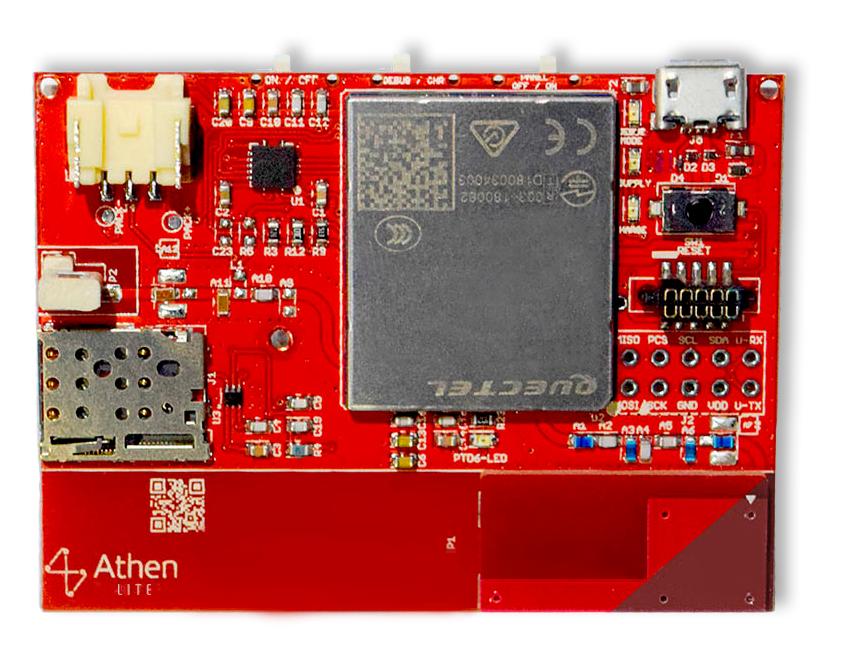

Athen Lite is a fully IoT board for industrial applications, set to be a platform for commercial deployments. It’s ideal for applications that require one or two sensors, such as smart-tracking or smart-metering. It allows connecting multiple sensors at a time of the most common protocols. Athen Lite integrates a communication module that enables the use of Cellular IoT Networks (LTE-M and NB-IoT). Cellular and GPS antennas are already embedded. General Dimensions (5.5cm x 6.2cm x 1.9cm) Operating Temperature Range (-25°C ~ 85°C) with USB wall adapter supply Hardware Operating Voltage 3.3v Microcontroller ARM Cortex-M0+ Max Clock Speed 48 MHz Ports (Analog, Digital, GPIO) On-Board Temperature Monitoring Digital/analog communication interfaces: UART,LPUART, I2C, ADC, SPI, GPIO’s Low-Leakage Wakeup Unit Interrupt General-purpose embedded LED Software MCUXpresso Programming IDE SWD Programming Interface Code & libraries Comes with battery/programer
